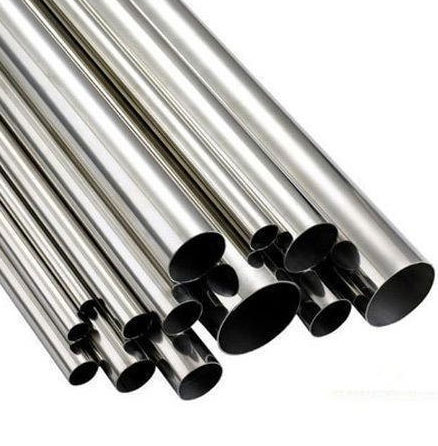

Stainless Steel Tubes Supplier & Stockist

There are two types of stainless steel tubes: welded tubes and seamless tubes. Stainless steel is used to create seamless tubes, which are often stronger and more long-lasting than welded tubes. On the other hand, welded tubes are created by joining two or more stainless steel parts through welding.

Stainless steel tubes are excellent for a variety of applications since they are offered in a wide range of diameters, shapes, and wall thicknesses. They can also be produced using different stainless steel grades, each having specific qualities, including 304, 316, and 321, among others.

Stainless Steel Tubes

Stainless Steel Tube Specifications

Standard: ASTM, ASME, DIN, BS, EN, IS, AMS, JIS, IBR & Other International Standards.
Dimensions: ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Size: 1/8NB TO 30NB IN
SS Pipes: 1/2" NB - 16" NB
ERW Pipes: 1/2" NB - 24" NB
EFW Pipes: 6" NB - 100" NB
Specialized in: Large Diameter Size
Schedule: SCH 5, SCH10, SCH 20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type: Seamless / ERW / Welded / Fabricated / CDW
Form: Round Pipes, Square Pipes, Rectangular Pipes, etc.
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded

SEND US YOUR REQUIREMENT NOW


Stainless Steel Tubes Chemical Composition

C Mn Si P S Cr Ni Fe
304 0.08 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 10.5 Balance
304L 0.03 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance
304H 0.04-0.10 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance

Stainless Steel Tubes Physical Properties

PropertyValue
Density7.9 to 8.05 g/cm3
Melting point1370 to 1425°C
Thermal conductivity15 W/mK
Electrical conductivity3.5% IACS
Magnetic propertiesAustenitic grades (e.g. 304, 316) are generally non-magnetic, while ferritic and martensitic grades can be magnetic
Yield strength170 to 550 MPa

ASTM A312 SS Tubes Mechanical Properties

304 304L 304H
Density 8 8 8
Melting Range,℃ 1400 ℃ 1400 ℃ 1400 ℃
Elongation % 40 40 40
Tensile Strength (Mpa) 515 485 515
Yield Strength (Mpa) 205 170 205
Hardness (Brinell) 201 201 201

Application Industry

Oil & Gas

Oil & Gas

Marine

Marine

Power Plants

Power Plants

Refinery

Refinery

Petrochemical

Petrochemical

Offshore

Offshore
