Stainless Steel 316L Sheets Supplier & Stockist

An alternative to stainless steel 316 sheets is stainless steel 316L sheets, where "L" stands for low carbon content. Molybdenum is added to the austenitic stainless steel alloy 316L to increase its corrosion resistance, especially in chloride-rich conditions. The 316L's low carbon content enhances weldability and lowers the chance of sensitization during welding.

For varied purposes, stainless steel 316L sheets come in a range of widths, thicknesses, and finishes. They are extensively employed in sectors like chemical processing, pharmaceuticals, medical equipment, food processing, and maritime.

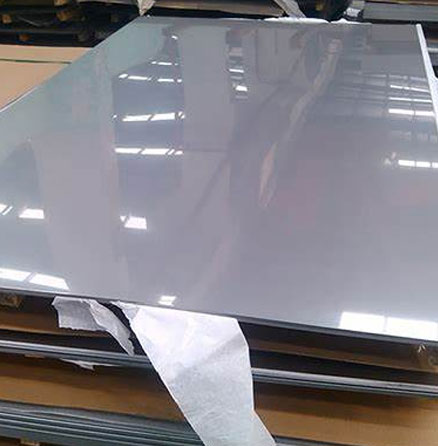

Stainless Steel 316L Sheet

Stainless Steel 316L Sheets Specifications

Materials: Specialized in Stainless Steel - 316L
Standard: DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Thickness: 0.3mm to 100mm
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Form: Plain Sheets, Shim Sheets, Perforated Sheets, Chequered Sheets, Strip, Flats, Blank (Circle), Ring (Flange), etc.

SEND US YOUR REQUIREMENT NOW


Stainless Steel 316L Sheets Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316L 0.035 max 2 max 1.00 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min

SS 316L Sheets Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 316L 8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Application Industry

Oil & Gas

Oil & Gas

Marine

Marine

Power Plants

Power Plants

Refinery

Refinery

Petrochemical

Petrochemical

Offshore

Offshore
