Stainless Steel Chequered Plates Supplier & Stockist

Stainless steel chequered plates are stainless steel plates with a raised pattern of diamonds or lines on the surface. They are sometimes referred to as stainless steel tread plates or stainless steel floor plates. They are suitable for applications where safety is a concern since the raised design improves traction and slide resistance.

Stainless steel grades like 304 or 316, which offer high corrosion resistance and durability, are frequently used to make stainless steel chequered plates. Usually, the surface design is produced using a technique known as rolling or embossing, which results in the raised pattern.

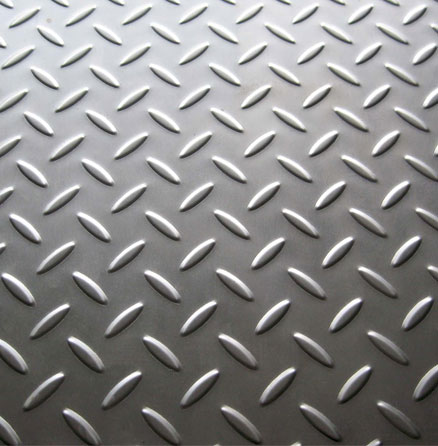

Stainless Steel Chequered Plates

Stainless Steel Chequered Plates Specifications

Standard: ASTM, ASME, DIN, BS, EN, IS, AMS, JIS, IBR & Other International Standards.
Stainless Steel : TP 304, 304L, 304H, 310, 310S, 316, 316H, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm etc.
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm
Thickness : 0.3 mm to 10.0 mm
Surface : The surface and finish of stainless steel plates: 2B, 2D, 2A, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, hair line, sand blast,Brush, etching etc.
Grade : SS 304 UNS S30400
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
End : Hot rolled Plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO (8), SATIN (Met with plastic coated)

SEND US YOUR REQUIREMENT NOW


Stainless Steel Chequered Plates Chemical Composition

Grade C Mn Si P S Cr Ni N Fe
Stainless Steel Chequered 304 Plates 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5
Stainless Steel Chequered 304L Sheets 0.03max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 12.0 0.10 max
Stainless Steel Chequered 304H Coil min: 18.0 max:20.0 min: 8.0 max: 10.5 min: 0.04 max:0.10 0.75 max 2.0 max 0.045 max 0.03 max 0.10 max
Stainless Steel Chequered 316 Foil Min - - - 0 - 16.0 10.0 -
Max 0.08 2.0 0.75 0.045 0.03 18.0 14.0 0.10
Stainless Steel Chequered 316L Plates Min - - - - - 16.0 10.0 -
Max 0.03 2.0 0.75 0.045 0.03 18.0 14.0 0.10
Stainless Steel Chequered 316H Sheet Min 0.04 0.04 0 - - 16.0 10.0 -
max 0.10 0.10 0.75 0.045 0.03 18.0 14.0 -

SS Chequered Plates Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201
