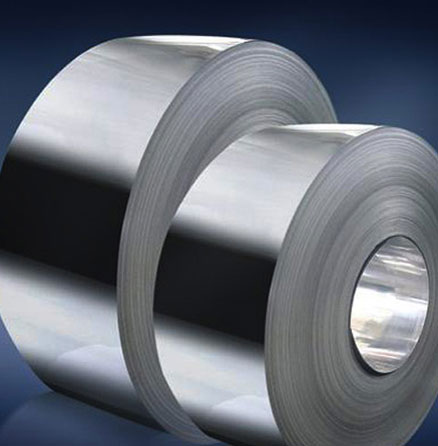

Stainless Steel 316 Coils Supplier & Stockist

The austenitic stainless steel 316 has a chromium content of 16–18%, a nickel content of 10–14%, a molybdenum content of 2–3%, and only trace amounts of silicon, carbon, and other elements. The corrosion resistance of the alloy is enhanced by the addition of molybdenum, particularly in settings with chlorides.

Applications that call for exceptional corrosion resistance, like maritime and chemical processing equipment as well as medical and pharmaceutical equipment, frequently use stainless steel 316 coils. They are also employed in the production of heat exchangers, architectural components, and machinery for food processing.

Stainless Steel 316 Coils

Stainless Steel 316 Coils Specifications

Grade: Specialized in Stainless Steel - 316
Standard: DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Width: 200mm to 3000mm
Length: 500mm to 12000mm (As per Customer's Requirement)
Thickness: 0.2mm to 5mm
Make: Authorised Dealer of Jindal

SEND US YOUR REQUIREMENT NOW


Stainless Steel 316 Coils Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316 Min 0 16.0 2.00 10.0
Max 0.08 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10

SS 316 Pipes Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (?m/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (n?.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316 8000 193 15.9 16.2 17.5 16.3 21.5 500 740

SS 316 Pipes Mechanical Properties

Grade

Tensile Strength (MPa) min

Yield Strength 0.2% Proof (MPa) min

Elongation (% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

316

515

205

40

95

217
