Stainless Steel 316 Sheets Supplier & Stockist

The grade 316 stainless steel alloy is used to create stainless steel products of the type known as sheets. A molybdenum-containing austenitic stainless steel alloy known as grade 316 stainless steel improves corrosion resistance, especially in settings with chlorides and acids.

To accommodate a range of applications, stainless steel 316 sheets are offered in a variety of widths, thicknesses, and finishes. In fields including marine, chemical processing, pharmaceuticals, food processing, and architecture, they are extensively used. When purchasing stainless steel 316 sheets, it's important to take into account details such sheet thickness, dimensions, surface finish, and the supplier's or manufacturer's reputation.

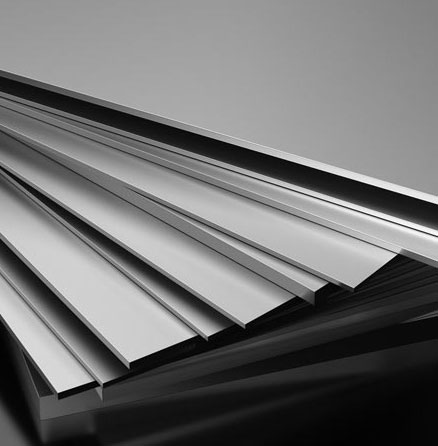

Stainless Steel 316 Sheet

Stainless Steel 316 Sheets Specifications

Materials: Specialized in Stainless Steel - 316
Standard: DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Thickness: 0.3mm to 100mm
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Form: Plain Sheets, Shim Sheets, Perforated Sheets, Chequered Sheets, Strip, Flats, Blank (Circle), Ring (Flange), etc.

SEND US YOUR REQUIREMENT NOW


Stainless Steel 316 Sheets Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316 0.08 max 2 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 11.00 – 14.00 67.845 min

SS 316 Sheets Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 316 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Application Industry

Oil & Gas

Oil & Gas

Marine

Marine

Power Plants

Power Plants

Refinery

Refinery

Petrochemical

Petrochemical

Offshore

Offshore
