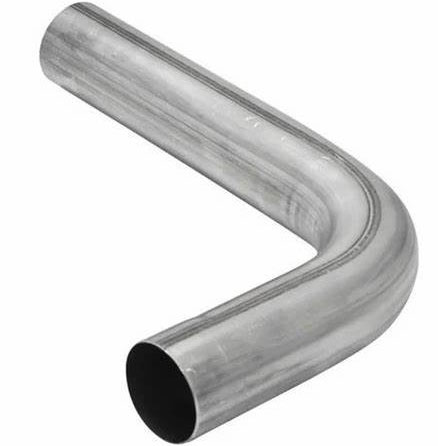

Stainless Steel Bend Pipes Supplier & Stockist

There are numerous angles for stainless steel bend pipes, including 90 degrees, 45 degrees, and 180 degrees. They can also be produced using different stainless steel grades, each having specific qualities, including 304, 316, and 321, among others.

Numerous benefits, such as high corrosion resistance, exceptional strength, and durability, are provided by stainless steel bend pipes. They are perfect for use in sanitary and hygienic applications because they are also simple to maintain and clean. Additionally, to enhance their appearance and corrosion resistance, stainless steel bend pipes can be finished with a variety of surface treatments like polishing or brushing.

Stainless Steel Bend Pipes Specifications

Specifications :	ASTM A403 & ASME SA403
Dimensions :	ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size :	Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter:	38.0 mm – 206.0 mm
Wall Thickness :	1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii :	75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R) :	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ) :	15°, 30°, 45°, 60°, 90°, 135°, 180°

SEND US YOUR REQUIREMENT NOW

GET IN TOUCH

Stainless Steel Bend Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N / Fe
SS 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	-	8 – 11	-
SS 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.03 max	18 – 20	-	8 – 13	-
SS 304H	0.10 max	2.0 max	0.75 max	0.045 max	0.03 max	18 – 20	-	8 – 10.5	-
SS 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00	67.845 min
SS 316L	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00	67.845 min
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	10.00 - 14.00	68.395 min

Stainless Steel Bend Pipes Physical Properties

Property	Value
Density	7.9 to 8.05 g/cm3
Melting point	1370 to 1425°C
Thermal conductivity	15 W/mK
Electrical conductivity	3.5% IACS
Magnetic properties	Austenitic grades (e.g. 304, 316) are generally non-magnetic, while ferritic and martensitic grades can be magnetic
Yield strength	170 to 550 MPa
