Stainless Steel Perforated Sheet Supplier & Stockist

A form of sheet metal that has been punched or drilled with a pattern of holes either manually or chemically is known as a stainless steel perforated sheet. Depending on the intended use and functioning, these holes can have a variety of shapes, sizes, and patterns. Grades of stainless steel that offer exceptional corrosion resistance and durability, such 304, 316, or 430 stainless steel, are frequently used to make perforated stainless steel sheets.

When choosing a stainless steel perforated sheet, take into account your application's particular needs as well as aspects like hole size and shape, open area %, sheet thickness, and dimensions. You may find the best stainless steel perforated sheet for your needs by speaking with a supplier or manufacturer with experience in perforated metal.

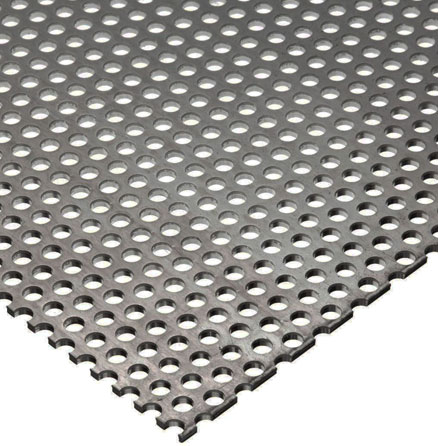

Stainless Steel Perforated Sheet

Stainless Steel Perforated Sheet Specifications

Specifications : ASTM A240 / ASME SA240
Item : Stainless Steel Perforated Sheets (Hot rolled, cold rolled)
Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Thickness : 0.3-15mm
Width : 1000mm~2000mm or customized
Length : 1000mm~6000mm or customized
Surface : the surface and finish of 304 Stainless Steel Perforated sheet: 2B, BA, HL, Brush, NO.1, NO.4, 8K, SB, etc
Application : Bridge, Shipbuilding, roofing, Car, etc
Standard sheet sizes : 1000mm*2000mm, 1250mm*2500mm, 1219mm*2438mm, 1500mm*3000mm We can produce other standard as customized
Grade : SS 304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc.

SEND US YOUR REQUIREMENT NOW


Stainless Steel Perforated Sheet Chemical Composition

Element SS 304
C 0.08 max
Mn 2 max
Si 0.75 max
P 0.045 max
S 0.030 max
Cr 18 – 20
Ni 8 – 11

SS Perforated Sheet Mechanical Properties

Element SS 304
Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %
