Duplex Steel 2205 Plates Supplier & Stockist

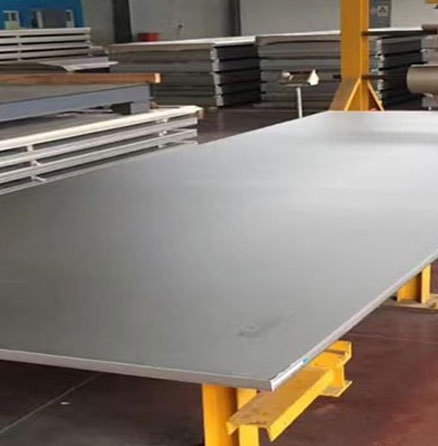

Duplex steel 2205 plates are formed of the duplex stainless steel alloy 2205 and are flat, rectangular-shaped components. The advantages of both austenitic and ferritic stainless steels are combined in duplex stainless steel, a two-phase microstructure alloy. It has great strength, outstanding weldability, and excellent corrosion resistance.

To accommodate a range of applications, duplex steel 2205 plates are offered in a variety of widths, thicknesses, and finishes. They are frequently utilised in sectors like pulp and paper, construction, maritime, oil and gas, and chemical processing. Duplex steel 2205 plates, take into account elements like plate thickness, dimensions, surface finish, and the supplier's or manufacturer's reputation.

Duplex Steel 2205 Plates Specifications

Grades:	Specialized in Duplex Steel 2205/S31803/S32205
Standard:	DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Specifications:	ASTM A240 / ASME SA240
Thickness:	4mm-100mm
Width:	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length:	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface:	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish:	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form:	Plain Plates, Chequered Plate, etc.

SEND US YOUR REQUIREMENT NOW

GET IN TOUCH

Duplex Steel 2205 Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
S32205	0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	21.0 – 23.0	2.50 – 3.50	4.50 – 6.50	0.8 – 0.20	63.54 min
S31803	0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	22.0 – 23.0	3.0 – 3.50	4.50 – 6.50	0.14 – 0.20	63.72 min
