Stainless Steel Plates Supplier & Stockist

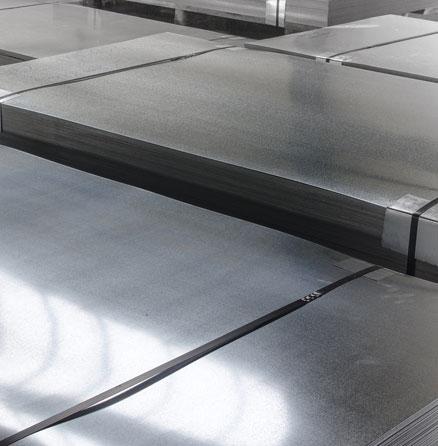

Stainless steel plates are rectangular, flat objects created from different stainless steel grades. They are frequently utilised in applications that call for greater strength and durability since they are thicker than stainless steel sheets. There are many different grades, widths, thicknesses, and finishes of stainless steel plates to suit a variety of industrial and commercial uses.

Stainless steel plates are used in a variety of industries, including construction, oil and gas, food and beverage processing, pharmaceuticals, maritime, and more. Stainless steel plate considerations include the type of stainless steel used, plate thickness, size, surface treatment, and the particular needs of your application.

Stainless Steel Plates Specifications

Materials:	Specialized in Stainless Steel - 304, 310
Standard:	DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Thickness:	0.3mm to 100mm
Width:	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length:	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface:	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Form:	Plain Plates, Shim Plates, Perforated Plates, Chequered Plates, Strip, Flats, Blank (Circle), Ring (Flange), etc.

SEND US YOUR REQUIREMENT NOW

GET IN TOUCH

Stainless Steel Plates Chemical Composition

Type	Grade		ASTM A240 Chemical Composition
Type	ASTM(A240M)	Others(JIS)	C	Si	Mn	P	S	Ni	Cr	Mo	Others
Austenitic Steels	304	SUS304	≤0.07	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	17.5/19.5	―	N≤0.10
	304H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―
	304L	SUS304L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	17.5/19.5	―	N≤0.10
	304N	SUS304N1	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―	N:0.10/0.16
	304LN	SUS304LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	18.0/20.0	―	N:0.10/0.16
	309S	SUS309S	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	12.0/15.0	22.0/24.0	―
	310S	SUS310S	≤0.08	≤1.50	≤2.00	≤0.045	≤0.030	19.0/22.0	24.0/26.0	―
	316	SUS316	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316L	SUS316L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00
	316LN	SUS316LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N:0.10/0.16
	317L	SUS317L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N≤0.10
	317LN	SUS317LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N:0.10/0.22
	321	SUS321	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/12.0	17.0/19.0	―	N≤0.10Ti:5ʷʢC+Nʣ/0.70
	347	SUS347	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/13.0	17.0/19.0	―	Nb:10ʷC/1.00
	904L	SUS890L	≤0.020	≤1.00	≤2.00	≤0.045	≤0.035	23.0/28.0	19.0/23.0	4.00/5.00	N≤0.10Cu:1.0/2.0
	S31254		≤0.020	≤0.80	≤1.00	≤0.030	≤0.010	17.5/18.5	19.5/20.5	6.0/6.5	N:0.18/0.25Cu:0.50/1.00
		SUS317J2	≤0.06	≤1.50	≤2.00	≤0.045	≤0.030	12.00/16.00	23.00/26.00	0.50/1.20	N:0.25/0.40

SS Plates Mechanical Properties

Type	Mechanical Properties for Stainless Steel Plates
	ASTM(A240M)	Others(JIS)	Tensile Properties			Hardness
	ASTM(A240M)	Others(JIS)	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)	HBW	HRBW
AusteniticSteels	304	SUS304	≥205	≥515	≥40	≤201	≤92
	304H		≥205	≥515	≥40	≤201	≤92
	304L	SUS304L	≥170	≥485	≥40	≤201	≤92
	304N	SUS304N1	≥240	≥550	≥30	≤217	≤95
	304LN	SUS304LN	≥205	≥515	≥40	≤217	≤95
	309S	SUS309S	≥205	≥515	≥40	≤217	≤95
	310S	SUS310S	≥205	≥515	≥40	≤217	≤95
	316	SUS316	≥205	≥515	≥40	≤217	≤95
	316L	SUS316L	≥170	≥485	≥40	≤217	≤95
	316H		≥205	≥515	≥40	≤217	≤95
	316LN	SUS316LN	≥205	≥515	≥40	≤217	≤95
	317L	SUS317L	≥205	≥515	≥40	≤217	≤95
	317LN	SUS317LN	≥240	≥550	≥40	≤217	≤95
	321	SUS321	≥205	≥515	≥40	≤217	≤95
	347	SUS347	≥205	≥515	≥40	≤201	≤92
	N08904/904L	SUS890L	≥220	≥490	≥35	≤196	≤90
	S31254		≥310	≥655	≥35	≤223	≤96
		SUS317J2	≥345	≥690	≥40	≤250	≤100
