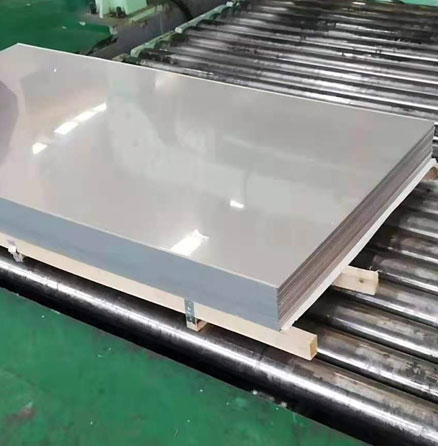

Stainless Steel 301 Sheets Supplier & Stockist

The grade 301 stainless steel alloy is used to make stainless steel sheets, another form of stainless steel product. Austenitic stainless steel alloy Grade 301 provides excellent corrosion resistance, high strength, and good ductility. It is frequently employed in situations where a mix of these qualities is necessary.

Stainless steel 301 sheets are offered in a range of dimensions, thicknesses, and finishes to satisfy varied needs. They are frequently utilised in sectors like chemical processing, automotive, aerospace, electronics, and medical equipment.

Stainless Steel 202 Sheets Specifications

Materials:	Specialized in Stainless Steel - 301
Standard:	DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Thickness:	0.3mm to 100mm
Width:	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length:	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface:	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Form:	Plain Sheets, Shim Sheets, Perforated Sheets, Chequered Sheets, Strip, Flats, Blank (Circle), Ring (Flange), etc.

SEND US YOUR REQUIREMENT NOW

GET IN TOUCH

Stainless Steel 301 Sheets Chemical Composition

Element	Percent by Weight
Element	Type 301 ANN
Carbon	0.150 maximum
Manganese	2.000 maximum
Phosphorus	0.045 maximum
Sulfur	0.030 maximum
Silicon	1.00 maximum
Chromium	16.00 – 18.00
Nickel	6.000 – 8.000
Nitrogen	0.10 maximum

Stainless Steel 301 Sheets Physical Properties

Physical Property		Value
Density		0.2850 lb/in³ (7.88g/cm³)
Melting Range		2250-2950°F (1399-1421°C)
Specific Gravity		8.03
Modulus of Elasticity in Tension		28•106 psi (193 GPa)*

Temperature Range		Mean Coefficient of Thermal Expansion
°C	°F	cm/cm°C	in/in/°F
20-100	68-212	16.6·10-6	9.2·10-6
20-300	68-572	17.6·10-6	9.8·10-6
20-500	68-932	18.6·10-6	10.3·10-6
20-700	68-1292	19.5·10-6	10.8·10-6
20-871	68-1600	19.8·10-6	11.0·10-6

SS 301 Sheets Mechanical Properties

Properties	Metric	Imperial
Tensile strength	515 MPa	74694 psi
Yield strength	275 MPa	39900 psi
Elastic modulus	207 GPa	30000 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elongation at break	40%	40%
