Stainless Steel Angle Supplier & Stockist

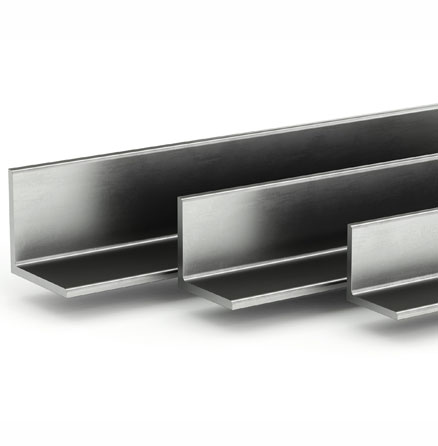

Stainless steel angles, also known as stainless steel angle bars, are L-shaped structural components made from stainless steel. They have two legs of equal or unequal length that form a 90-degree angle. Stainless steel angles are available in various grades, with the most common ones being 304 and 316 stainless steel.

Stainless steel angles, consider factors such as the grade of stainless steel, leg lengths, thickness, and the specific requirements of your application. Consulting with a trusted supplier or manufacturer can help you choose the most suitable stainless steel angles.

Stainless Steel Angle Specifications

Grades:	Specialized in Stainless Steel - 202 / JT / J4 / 304 / 304L / 304H / 310 / 310S / 316/316L / 316Ti / 317 / 317L / 321 / 321H / 347 / 347H / 409 /409M / X2CRNI12 / 410 / 410S / 441 / 441-HONDA / 420 / 430 / 904 / 904L Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Standard:	DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Specifications:	ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M
SS Angle :	5mm to 9mm
SS Channel:	40mm20mm~300mm300mm
SS Beam:	3thru 12.31?
SS Chain :	1/8 inch – 1/2 inch Diameter
Thickness :	3.0mm – 120mm
Length :	3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Type :	Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain

SEND US YOUR REQUIREMENT NOW

GET IN TOUCH

Stainless Steel Angle Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni
Stainless 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	–	8 – 11
Stainless 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.03 max	18 – 20	-	8 – 13
Stainless 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00
Stainless 316L	0.035 max	2.0 max	1.0 max	0.045 max	1.0 max	16.00 - 18.00	16.00 - 18.00	10.00 - 14.00
