Stainless Steel L Angle Supplier & Stockist

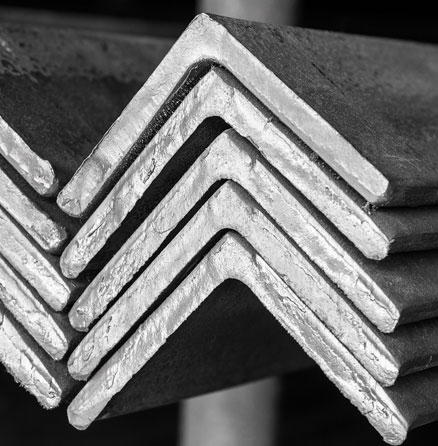

Stainless Steel L angles, also known as stainless steel angle bars or stainless steel L-bars, are structural components made from stainless steel. They have a 90-degree L-shaped profile with two legs of equal or unequal length. Stainless steel L angles are commonly made from stainless steel grades such as 304, 316, or other variations depending on the specific requirements of the application.

Stainless steel L angles, consider factors such as the grade of stainless steel, leg lengths, thickness, and the specific requirements of your application. Consulting with a trusted supplier or manufacturer can help you choose the most suitable stainless steel L angles.

Stainless Steel L Angle

Stainless Steel L Angle Specifications

Grades: Specialized in Stainless Steel - 202 / JT / J4 / 304 / 304L / 304H / 310 / 310S / 316/316L / 316Ti / 317 / 317L / 321 / 321H / 347 / 347H / 409 /409M / X2CRNI12 / 410 / 410S / 441 / 441-HONDA / 420 / 430 / 904 / 904L Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Standard: DIN, BS, EN, IS, ASTM, AMS, JIS & Other International Standards.
Specifications: ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M
SS Angle : 5mm to 9mm
SS Channel: 40mm*20mm~300mm*300mm
SS Beam: 3thru 12.31?
SS Chain : 1/8 inch – 1/2 inch Diameter
Thickness : 3.0mm – 120mm
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Type : Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain

SEND US YOUR REQUIREMENT NOW


Stainless Steel L Angle Chemical Composition

Grade C Mn Si P S Cr Mo Ni
Stainless 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11
Stainless 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 - 8 – 13
Stainless 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00
Stainless 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 16.00 - 18.00 10.00 - 14.00

SS L Angle Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Application Industry

Oil & Gas

Oil & Gas

Marine

Marine

Power Plants

Power Plants

Refinery

Refinery

Petrochemical

Petrochemical

Offshore

Offshore
